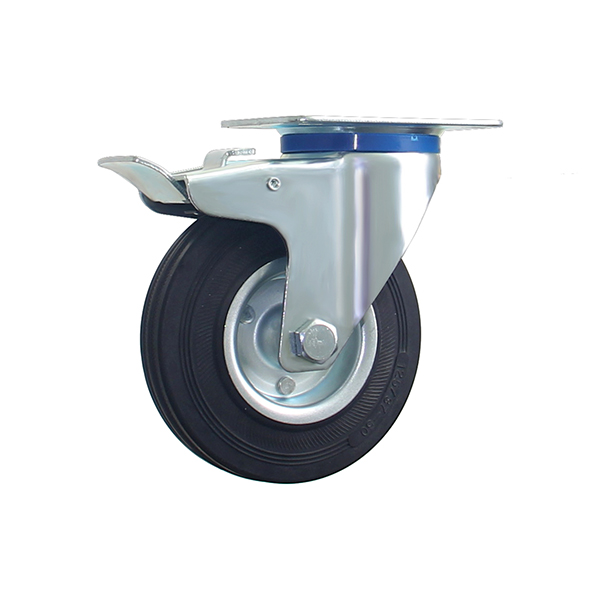

125mm Black Standard rubber on steel cover rim Wheels, with total brake, Medium Duty Castors, European stamping industrial bracket, Zinc ( galvanized) surface
Bracket: A series
• Steel stamping
• Double ball bearing in the swivel head
• Swivel head sealed
• With Total Brake
• Minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic riveting.
Wheel:
• Wheel tread: White PP (Polypropylene ) wheel, non-marking, non-staining
• Wheel rim: injection molding, Roller bearing.
Other characteristics:
• Excellent traction
• Slip-resistant
• High elasticity
Technical data:
| Wheel Ø (D) |  |
125mm |
| Wheel Width |  |
37.5mm |
| Load Capacity |  |
120mm |
| Total Height (H) |  |
155mm |
| Plate Size |  |
105*80mm |
| Bolt Hole Spacing |  |
80*60mm |
| Offset (F) |  |
38mm |
| Bearing type |  |
Central precision ball bearing |
| Non-marking | × | |
| Non-staining | × |
Product parameters
|
|
|
|
|
|
|
|
|
|
 |
|
Wheel Diameter |
Load |
Axle |
Plate/Housing |
Overall |
Top-plate Outer Size |
Bolt Hole Spacing |
Bolt Hole Diameter |
Opening |
Product Nunber |
|
80*30 |
80 |
38 |
2.5|2.5 |
108 |
105*80 |
80*60 |
11*9 |
42 |
R1-080S4-604 |
|
100*30 |
100 |
38 |
2.5|2.5 |
128 |
105*80 |
80*60 |
11*9 |
42 |
R1-100S4-604 |
|
125*36 |
120 |
38 |
2.5|2.5 |
155 |
105*80 |
80*60 |
11*9 |
52 |
R1-125S4-604 |
|
160*40 |
150 |
38 |
3.5|3.0 |
190 |
135*110 |
105*80 |
13.5*11 |
62 |
R1-160S4-604 |
|
200*50 |
180 |
38 |
3.5|3.0 |
235 |
135*110 |
105*80 |
13.5*11 |
62 |
R1-200S4-604 |
Features
1. It is non-toxic and odorless, belongs to environmental protection materials, and can be recycled.
2. It has oil resistance, acid resistance, alkali resistance and other characteristics. Common organic solvents such as acid and alkali have little effect on it.
3. It has the characteristics of rigidity, toughness, fatigue resistance and stress cracking resistance, and its performance is not affected by humidity environment.
4. Suitable for use on a variety of ground; Widely used in factory handling, warehousing and logistics, machinery manufacturing and other industries; The operating temperature range is - 15~80 ℃.
5. The advantages of bearing are small friction, relatively stable, not changing with bearing speed, and high sensitivity and accuracy.
