125mm PU on AL rim Wheels, European type Medium Duty Castors, Swivel bracket with total brake, Zinc ( galvanized) surface Featured Image
  • 125mm PU on AL rim Wheels, European type Medium Duty Castors, Swivel bracket with total brake, Zinc ( galvanized) surface

125mm PU on AL rim Wheels, European type Medium Duty Castors, Swivel bracket with total brake, Zinc ( galvanized) surface

Short Description:

European Medium duty industrial castors, Steel stamping Swivel bracket with total brake, Zinc ( Galvanized ) surface;  with a Medium load capacity design. It has a Red PU on Aluminum rim/core wheel, and Double ball bearing.


  • facebook
  • linkedin
  • twitter
  • youtube

Product Detail

Product Tags

Bracket: R series

          • Steel stamping

          • Double ball bearing in the swivel head

          • Swivel head sealed

          • With Total Brake

          • Minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic riveting.



Wheel:

           • Wheel tread: Yellow cast Polyurethane (PU) wheel, non-marking, non-staining

           • Wheel rim: Die-cast aluminum core, Double ball bearing.

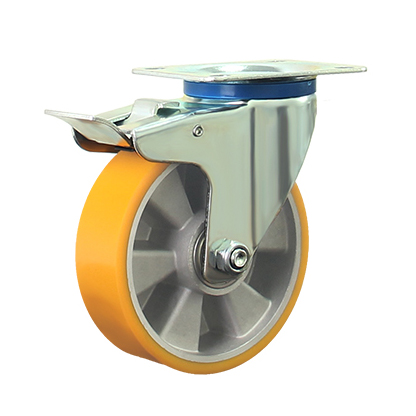

5 inch swivel with total brake pu on al2-600

Key Features:

                            • Abrasion-resistant

                            • impact-resistant

                            • chemically resistant

                            • stable performance

                            • long service life.

Applications:

                          Widely used in high load-bearing and high-frequency movement scenarios such as factory shelving and logistics equipment.

Performance:

                           In logistics warehouses, nylon caster wheels reliably support heavy loads with minimal wear, significantly improving operational efficiency.

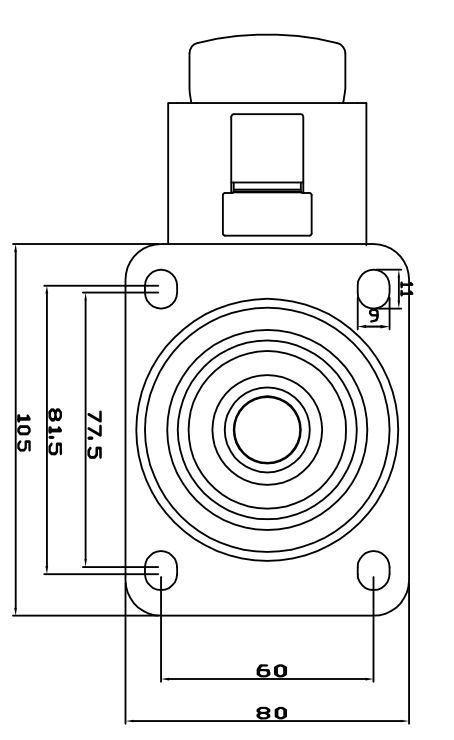

5 inch top plate with total brake

Technical data:



Wheel Ø (D) 125mm
Wheel Width 40mm
Load Capacity 180mm
Total Height (H) 155mm
Plate Size 105*80mm
Bolt Hole Spacing 80*60mm
Offset (F) 38mm
Bearing type 图片1 Double ball bearing
Non-marking   ×
Non-staining   ×







Product parameters

Wheel Diameter
 & Tread Width

Load
(kg)

Axle
Offset

Plate/Housing
Thickness

Overall
Height

Top-plate  Outer Size

Bolt Hole  Spacing

Bolt Hole  Diameter

Opening
Width

Product Number

80*32

120

38

2.5|2.5

108

105*80

80*60

11*9

42

 R1-80S4-622

100*32

150

38

2.5|2.5

128

105*80

80*60

11*9

42

 R1-100S4-622

125*40

180

38

2.5|2.5

155

105*80

80*60

11*9

52

 R1-125S4-622

160*50

250

52

3.5|3.0

190

135*110

105*80

13.5*11

62

 R1-160S4-622
 200*50  300  54  3.5|3.0  235  135*110  105*80  13.5*11  62 R1-200S4-622

Features

1. It is non-toxic and odorless, belongs to environmental protection materials, and can be recycled.

2. It has oil resistance, acid resistance, alkali resistance and other characteristics. Common organic solvents such as acid and alkali have little effect on it.

3. It has the characteristics of rigidity, toughness, fatigue resistance and stress cracking resistance, and its performance is not affected by humidity environment.

4. Suitable for use on a variety of ground; Widely used in factory handling, warehousing and logistics, machinery manufacturing and other industries; The operating temperature range is - 15~80 ℃.

5. The advantages of bearing are small friction, relatively stable, not changing with bearing speed, and high sensitivity and accuracy.
