160mm PU on AL rim Wheels, European type Heavy Duty Castors, Fixed bracket, Zinc ( galvanized) surface

Short Description:

European Heavy duty industrial castors, Steel stamping Fixed bracket, Zinc ( Galvanized ) surface; with a Heavy load capacity design. It has a Red PU on Aluminum rim/core wheel, and Double ball bearing.

Send email to us

Product Detail

Product Tags

Bracket: R series

• Pressed Steel and Zinc Surface treatment

• Fixed Bracket

• Fixed castor support can be fixed on the ground or other plane, avoiding the equipment the use of shaking and shaking, with good stability and safety.

Wheel:

• Wheel tread: Yellow cast Polyurethane (PU) wheel, non-marking, non-staining

• Wheel rim: Die-cast aluminum core, Double ball bearing.

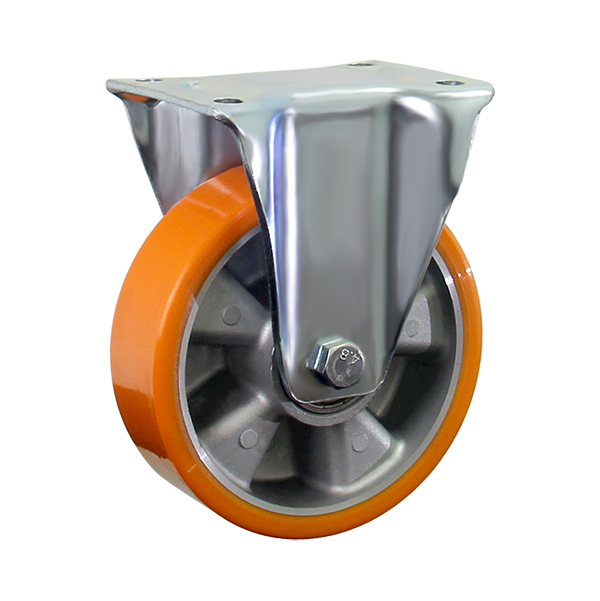

6 inch heavy duty PU on AL rim wheel fixed 600

Key Features:

• Abrasion-resistant

• Quiet rolling

• Chemically resistant

• Floor protection

• long service life.

Applications:

Medical & Laboratory Equipment, Light Industrial & Logistics, Warehouse Carts & Industrial Equipment.

Performance:

Assembly lines, packaging carts, and light-duty material handling equipment.

Technical data:

Wheel Ø (D)		160mm
Wheel Width		50mm
Load Capacity		450mm
Total Height (H)		196mm
Plate Size		135*110mm
Bolt Hole Spacing		105*80mm
Offset (F)		52mm
Bearing type		Double ball bearing
Non-marking		×
Non-staining		×

Product parameters


Wheel Diameter & Tread Width	Load (kg)	Axle Offset	Plate/Housing Thickness	Overall Height	Top-plate Outer Size	Bolt Hole Spacing	Bolt Hole Diameter	Opening Width	Product Number
*16050**	450	52	5.0\|4.0	196	*135110**	*10580**	*13.511**	63	R2-160S-622
200*50	500	54	5.0\|4.0	240	135*110	105*80	13.5*11	63	R2-200S-622

Features

1. It is non-toxic and odorless, belongs to environmental protection materials, and can be recycled.

2. It has oil resistance, acid resistance, alkali resistance and other characteristics. Common organic solvents such as acid and alkali have little effect on it.

3. It has the characteristics of rigidity, toughness, fatigue resistance and stress cracking resistance, and its performance is not affected by humidity environment.

4. Suitable for use on a variety of ground; Widely used in factory handling, warehousing and logistics, machinery manufacturing and other industries; The operating temperature range is - 15~80 ℃.

5. The advantages of bearing are small friction, relatively stable, not changing with bearing speed, and high sensitivity and accuracy.
