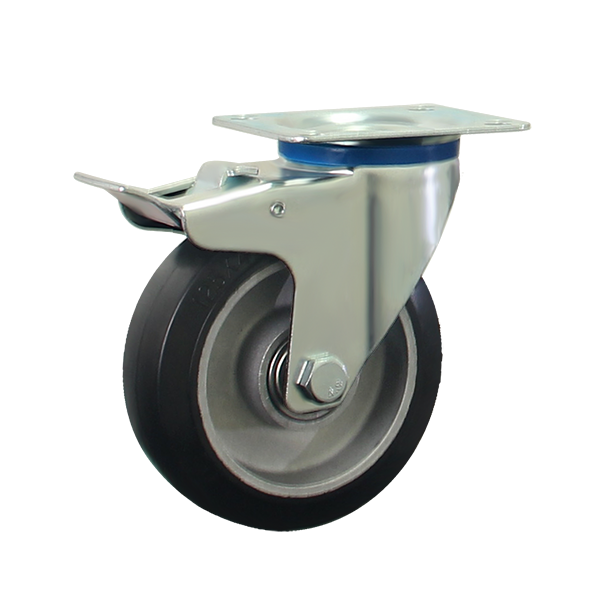

125mm Black Elastic Rubber on AL Rim Wheels, with total brake, Medium Duty Castors, European stamping industrial bracket, Zinc (galvanised) surface Featured Image
  • 125mm Black Elastic Rubber on AL Rim Wheels, with total brake, Medium Duty Castors, European stamping industrial bracket, Zinc (galvanised) surface

125mm Black Elastic Rubber on AL Rim Wheels, with total brake, Medium Duty Castors, European stamping industrial bracket, Zinc (galvanised) surface

Short Description:

European medium duty industrial castors, Steel stamping swivel bracket with total brake, Zinc ( Galvanised ) surface;  with a Medium load capacity design. Black Elastic Rubber on AL rim wheel, and Double precision ball bearing.


  • facebook
  • linkedin
  • twitter
  • youtube

Product Detail

Product Tags

Bracket: R series

          • Steel stamping

          • Double ball bearing in the swivel head

          • Swivel head sealed

          • With Total Brake

          • Minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic riveting.



Wheel:

           • Wheel tread: Black Elastic Rubber, Soft, high resilience and protect the floor. Suit for Outdoor and indoor applications.

           • Wheel rim: die-casting aluminum, Double ball bearing. Height Load capacity and anti-rust.

5寸铝芯橡胶刹车 600

Key Features:

                                  • High Elasticity

                                  • Anti-Slip

                                  • Shock Resistance

Performance:

                                   Stable on uneven ground.

Application:

                                  Ideal for handcarts & outdoor equipment to ensure stability in complex environments.

刹车底板

Technical data:



Wheel Ø (D) 125mm
Wheel Width 40mm
Load Capacity 150mm
Total Height (H) 155mm
Plate Size 105*80mm
Bolt Hole Spacing 80*60mm
Offset (F) 38mm

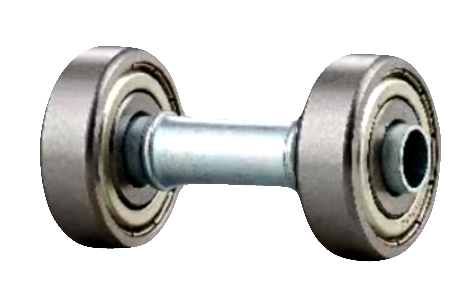

Bearing type 图片1 Central precision ball bearing
Non-marking   ×
Non-staining   ×







Product parameters

Product Parameters (1)

Product Parameters (2)

Product Parameters (3)

Product Parameters (4)

Product Parameters (5)

Product Parameters (6)

Product Parameters (7)

Product Parameters (8)

Product Parameters (9)

 no.

Wheel Diameter
 & Tread Width

Load
(kg)

Axle
Offset

Plate/Housing
Thickness

Overall
Height

Top-plate  Outer Size

Bolt Hole  Spacing

Bolt Hole  Diameter

Opening
Width

Product Nunber

80*36

100

38

2.5|2.5

108

105*80

80*60

11*9

42

 R1-080S4-592-B

100*36

100

38

2.5|2.5

128

105*80

80*60

11*9

42

 R1-100S4-592-B

125*40

150

38

2.5|2.5

155

105*80

80*60

11*9

52

 R1-125S4-592-B

160*50

160

52

3.5|3.0

190

135*110

105*80

13.5*11

62

 R1-160S4-592-B

200*50

200

54

3.5|3.0

235

135*110

105*80

13.5*11

62

 R1-200S4-592-B

Features

1. It is non-toxic and odorless, belongs to environmental protection materials, and can be recycled.

2. It has oil resistance, acid resistance, alkali resistance and other characteristics. Common organic solvents such as acid and alkali have little effect on it.

3. It has the characteristics of rigidity, toughness, fatigue resistance and stress cracking resistance, and its performance is not affected by humidity environment.

4. Suitable for use on a variety of ground; Widely used in factory handling, warehousing and logistics, machinery manufacturing and other industries; The operating temperature range is - 15~80 ℃.

5. The advantages of bearing are small friction, relatively stable, not changing with bearing speed, and high sensitivity and accuracy.
