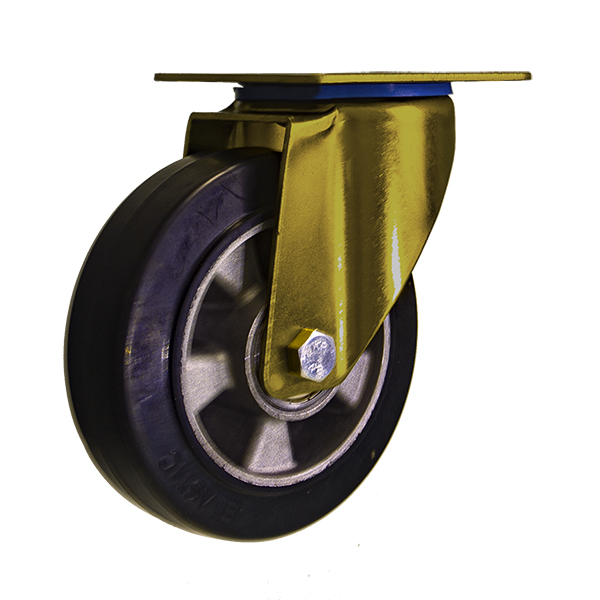

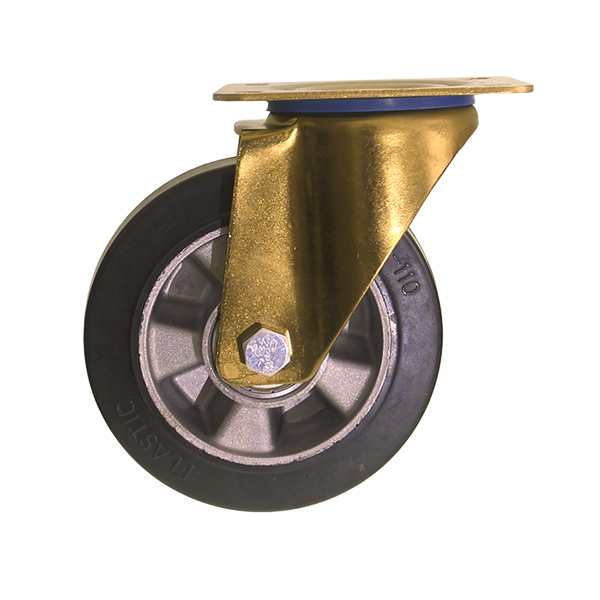

European industrial Castor, 160mm, Top plate, Swivel, Black Elastic Rubber on AL Rim Wheels Featured Image
  • European industrial Castor, 160mm, Top plate, Swivel, Black Elastic Rubber on AL Rim Wheels

European industrial Castor, 160mm, Top plate, Swivel, Black Elastic Rubber on AL Rim Wheels

Short Description:

Detailed parameters of the Castor:

• Wheel Dia: 160mm

• Wheel width: 50mm

• Load capacity: 250 KG

• Opening leg space: 62mm

• Load height: 190mm

• Top plate size: 135mm*110mm

• Bolt hole spacing: 105mm*80mm

• Bolt hole Dia: Ø13.5mm*11mm


  • facebook
  • linkedin
  • twitter
  • youtube

Product Detail

Product Tags

Product introduction

Aluminum core rubber wheel has high bearing capacity, wear resistance, impact resistance, chemical corrosion resistance and heat resistance, and is widely used in industry. In addition, the outer layer of the wheel is wrapped by rubber, which has good noise reduction effect. There are several small steel balls around the shaft center in the double ball bearing, so the friction is small and there is no oil leakage.

160 black elastic rubber on AL Wheels

Detailed parameters of the Castor:

• Wheel Dia: 160mm

• Wheel width: 50mm

• Load capacity: 250 KG

• Opening leg space: 62mm

• Load height: 190mm

• Top plate size: 135mm*110mm

• Bolt hole spacing: 105mm*80mm

• Bolt hole Dia: Ø13.5mm*11mm

Bracket:

               • pressed steel, yellow zinc surface treatment

               • double ball bearing in the swivel head

               • swivel head seal

               • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic riveting process



Wheel :

• Rim: Al Rim。

• Tread: Black Elastic Rubber.



Bearing: Double ball bearing

160 elastic rubber on AL wheels swivel

Product parameters

Product Parameters (1)

Product Parameters (2)

Product Parameters (3)

Product Parameters (4)

Product Parameters (5)

Product Parameters (6)

Product Parameters (7)

Product Parameters (8)

Product Parameters (9)

 no.

Wheel Diameter

 & Tread Leg space

Load

(kg)

Axle

Offset

Bracket

Thickness

Load

Height

Top-plate  Size

Bolt Hole  Spacing

Bolt Hole  Diameter

Opening

Leg space

Product Nunber

160*50

250

52

3.0|3.5

190

135*110

105*80

13.5*11

62

R1-160S-592-B

200*50

300

54

3.0|3.5

235

135*110

105*80

13.5*11

62

R1-200S-592-B

Features

1. Excellent tensile resistance and highest tensile strength.

2. The aluminum core is not easy to rust and has good durability.

3. Good electrical insulation, skid resistance, wear resistance, weather resistance and general chemicals.

4. Soft texture can effectively reduce noise in use.

5. Good dynamic mechanical properties.

6. Double ball bearing has long service life and good anti-aging performance.

Company Introduction

Zhongshan Rizda Castor Manufacturing Co., Ltd. Located in Zhongshan City, Guangdong Province, one of the central cities of the Pearl River Delta, covering an area of more than 10000 square maters, It is a professional manufacture of wheels and Castors to provide customers with a wide range of sizes, types and styles of products for a variety of applications. The predecessor of the company was BiaoShun Hardware Factory, founded in 2008 which have had 15 years of professional production and manufacturing experience.
