European industrial Castor, 125mm, Fixed, Blue Elastic Rubbe, wheel

Short Description:

1. Wheel center: nylon black

2. Bearing: Roller bearing

Rubber castors are castors made of a high elastic polymer material with reverse deformation. They have high wear resistance and impact resistance, and are widely used in industrial equipment.


Product Detail

Product Tags

Company Introduction

Zhongshan Rizda Castor Manufacturing Co., Ltd. Located in Zhongshan City, Guangdong Province, one of the central cities of the Pearl River Delta, covering an area of more than 10000 square maters. It is a professional manufacture of wheels and Castors to provide customers with a wide range of sizes, types and styles of products for a variety of applications. The predecessor of the company was BiaoShun Hardware Factory, founded in 2008 which have had 15 years of professional production and manufacturing experience.

Product introduction

Rubber castors have good oxidation resistance and corrosion resistance, which can effectively resist corrosive factors in industrial environment. The castors are soft and can effectively reduce noise in use. The needle roller bearing is a roller bearing with cylindrical rollers. The roller length is 3~10 times of the diameter, and the diameter is generally no more than 5 mm. The transmission efficiency is high. The friction coefficient is only 0.001-0.005;

f51b11183275d9f761e9a2098d7bea0

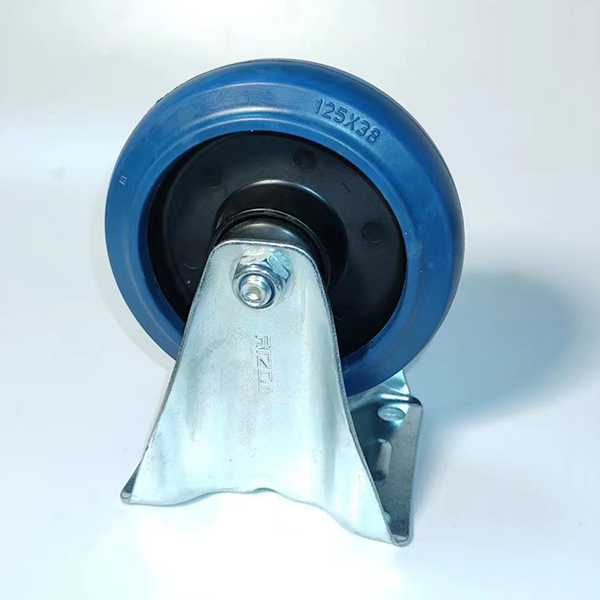

Detailed parameters of the Castor:

• Wheel Dia : 125mm

• Wheel width : 38mm

• Load capacity : 150 KG

• Load hight : 155mm

• Top plate size : 105mm*80mm

• Bolt hole spacing : 80mm*60mm

• Bolt hole Dia : Ø11mm*9mm

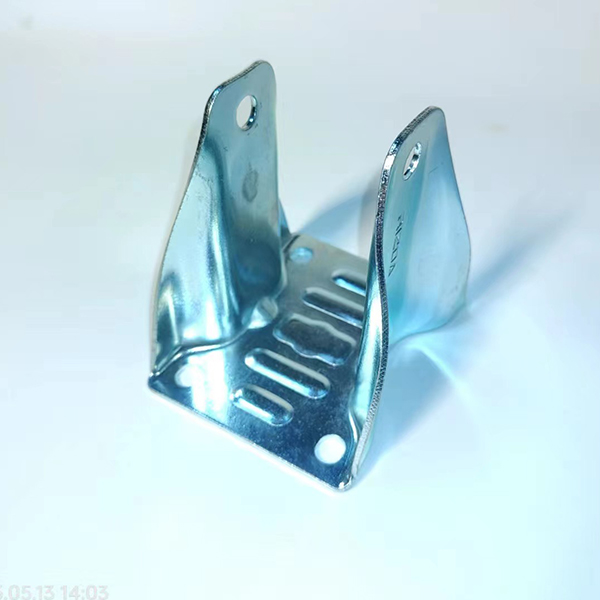

Bracket:

• pressed steel, zinc-plated, blue-passivated





Fixed castor support can be fixed on the ground or other plane, avoiding the equipment the use of shaking and shaking, with good stability and safety.

60ca870c7b2e4fbfd5d359e7fe18a8e
50ce6023bc438cde9cec3c71177fc59

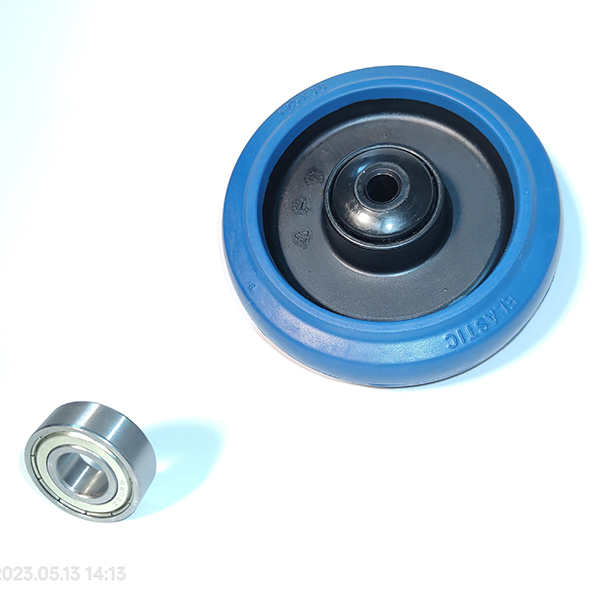

Wheel :

• Tread : Blue Elastic Rubber, Hardness 54 shore A.

• wheel Rim: Black Nylon Rim.

•Bearing: Central precision ball bearing

Features

1. Excellent tensile resistance and highest tensile strength.

2. Long-term temperature resistance exceeds 70 ℃ and low temperature environment performance is good. It can still maintain good bending at - 60 ℃.

3. Good electrical insulation, skid resistance, wear resistance, weather resistance and general chemicals.

4. Soft texture can effectively reduce noise in use.

5. Good dynamic mechanical properties.

6. The rolling bearing has high mechanical performance and long service life.

7. Since the rolling bearing has high transmission efficiency and low heat output, it can reduce the consumption of lubricating oil, and the lubrication and maintenance are more convenient.

Product parameters

Product Parameters (1)

Product Parameters (2)

Product Parameters (3)

Product Parameters (4)

Product Parameters (5)

Product Parameters (6)

Product Parameters (7)

Product Parameters (8)

Product Parameters (9)

no.

Wheel Diameter
& Tread Leg space

Load
(kg)

Axle
Offset

Bracket
Thickness

Load
Height

Top-plate  Size

Bolt Hole  Spacing

Bolt Hole  Diameter

Opening
Leg space

Product Nunber

80*35

80

/

2.5

108

105*80

80*60

11*9

42

R1-080R-554

100*36

120

/

2.5

128

105*80

80*60

11*9

42

R1-100R-554

125*36

150

/

2.5

155

105*80

80*60

11*9

52

R1-125R-554

160*50

250

/

3.0

190

135*110

105*80

13.5*11

62

R1-160R-554

200*50

300

/

3.0

235

135*110

105*80

13.5*11

62

R1-200R-554
