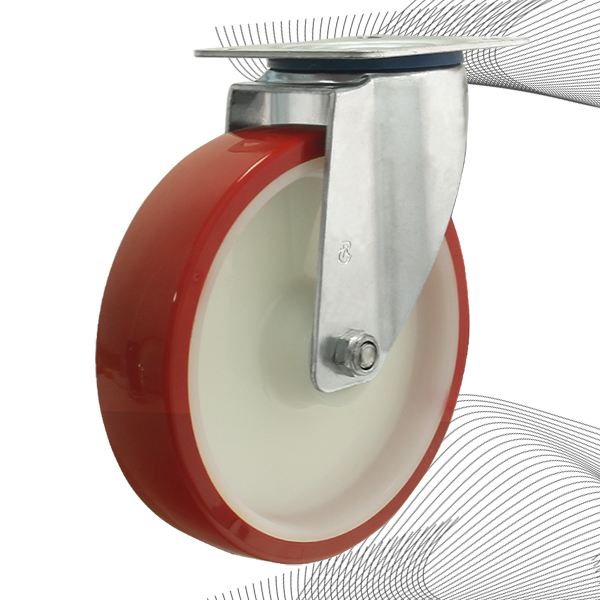

European industrial Castor, 200mm, Top plate, Swivel, PU wheel with Nylon rim Featured Image
  • European industrial Castor, 200mm, Top plate, Swivel, PU wheel with Nylon rim

European industrial Castor, 200mm, Top plate, Swivel, PU wheel with Nylon rim

Short Description:

Detailed parameters of the Castor:

• Wheel Dia: 200mm

• Wheel width: 50mm

• Load capacity: 250 KG

• Axle Offset: 62mm

• Load height: 235mm

• Top plate size: 135mm*110mm

• Bolt hole spacing: 105mm*80mm

• Bolt hole Dia: Ø13.5mm*11mm


  • facebook
  • linkedin
  • twitter
  • youtube

Product Detail

Product Tags

Product introduction

The elastomer of PU castors has good properties such as abrasion resistance, chemical erosion resistance, high strength, high elasticity, low pressure resistance, wear resistance, strong shock absorption, tear resistance, radiation resistance, high load bearing and shock absorption. Plain bearing is a kind of linear motion system, which is used for the combination of linear stroke and cylindrical shaft. It has small friction, is relatively stable, does not change with the bearing speed, and can obtain stable linear motion with high sensitivity and accuracy.

200 swivel

Detailed parameters of the Castor:

• Wheel Dia: 200mm

• Wheel width: 50mm

• Load capacity: 250 KG

• Axle Offset: 62mm

• Load height: 235mm

• Top plate size: 135mm*110mm

• Bolt hole spacing: 105mm*80mm

• Bolt hole Dia: Ø13.5mm*11mm

Bracket:

• pressed steel, zinc-plated, blue-passivated

              • double ball bearing in the swivel head

              • swivel head seal

              • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic riveting process

Wheel :

• Rim: White Nylon rim。

• Tread: High-quality PU, Hardness 86 shore A, Colore red, non-marking, non-staining.

160mm swivel

Product parameters

Product Parameters (1)

Product Parameters (2)

Product Parameters (3)

Product Parameters (4)

Product Parameters (5)

Product Parameters (6)

Product Parameters (7)

Product Parameters (8)

Product Parameters (9)

 no.

Wheel Diameter
 & Tread Width

Load
(kg)

Axle
Offset

Plate/Housing
Thickness

Overall
Height

Top-plate  Outer Size

Bolt Hole  Spacing

Bolt Hole  Diameter

Opening
Width

Product Number

160*50

200

52

2.5|2.5

190

135*110

150*80

13.5*11

62

R1-160S-244

200*50

250

54

2.5|2.5

235

135*110

150*80

13.5*11

62

R1-200S-244

Company introduction

Zhongshan Rizda Castor Manufacturing Co., Ltd. Located in Zhongshan City, Guangdong Province, one of the central cities of the Pearl River Delta, covering an area of more than 10000 square maters. It is a professional manufacture of wheels and Castors to provide customers with a wide range of sizes, types and styles of products for a variety of applications. The predecessor of the company was BiaoShun Hardware Factory, founded in 2008 which have had 15 years of professional production and manufacturing experience.

Features

1. The wear resistance is very excellent, especially in the presence of water, oil and other wetting media, its wear resistance is more prominent, up to several times to several times of ordinary materials.

2. PU castor has good physical and chemical resistance. The polyurethane castor oil has the advantages of oil resistance, ozone resistance, aging resistance, radiation resistance and low temperature resistance.

3. The bearing capacity of PU universal wheel of the same specification is 6-7 times that of rubber tire.

4. The advantages of bearing are small friction, relatively stable, not changing with bearing speed, and high sensitivity and accuracy.
