European industrial Castor,100mm,Fixed, TPR wheel Featured Image
  • European industrial Castor,100mm,Fixed, TPR wheel

European industrial Castor,100mm,Fixed, TPR wheel

Short Description:

Detailed parameters of the Castor:

• Wheel Dia: 100mm

• Wheel width: 36mm

• Load capacity: 150 KG

• Axle Offset: 42mm

• Load height: 128mm

• Top plate size: 105mm*80mm

• Bolt hole spacing: 80mm*60mm

• Bolt hole Dia: Ø11mm*9mm


  • facebook
  • linkedin
  • twitter
  • youtube

Product Detail

Product Tags

Product introduction

TPR rubber wheels have good elasticity, anti-skid performance and good mute effect. They are mostly used for household, commercial and other purposes, such as the silent cart castors used in hospitals. The single ball bearing adopts the mixed form of sliding friction and rolling friction, and the rotor and stator are lubricated with balls and equipped with lubricating oil. It overcomes the problems of short service life and unstable operation of oil-bearing.

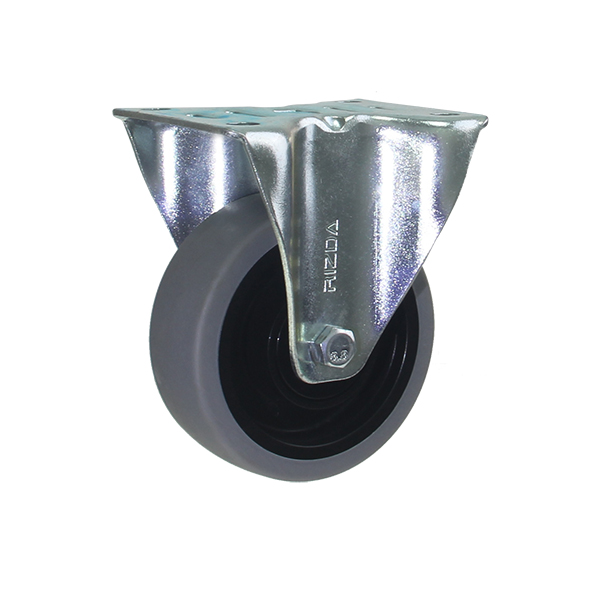

TPR 100mm fixed 2 600

Detailed parameters of the Castor:

• Wheel Dia: 100mm

• Wheel width: 36mm

• Load capacity: 150 KG

• Axle Offset: 42mm

• Load height: 128mm

• Top plate size: 105mm*80mm

• Bolt hole spacing: 80mm*60mm

• Bolt hole Dia: Ø11mm*9mm

Bracket:

 • pressed steel, zinc-plated, blue-passivated



Fixed castor support can be fixed on the ground or other plane, avoiding the equipment the use of shaking and shaking, with good stability and safety.

Wheel :

• Rim: Black PP rim。

• Tread: Gray TPR, non-marking, non-staining.

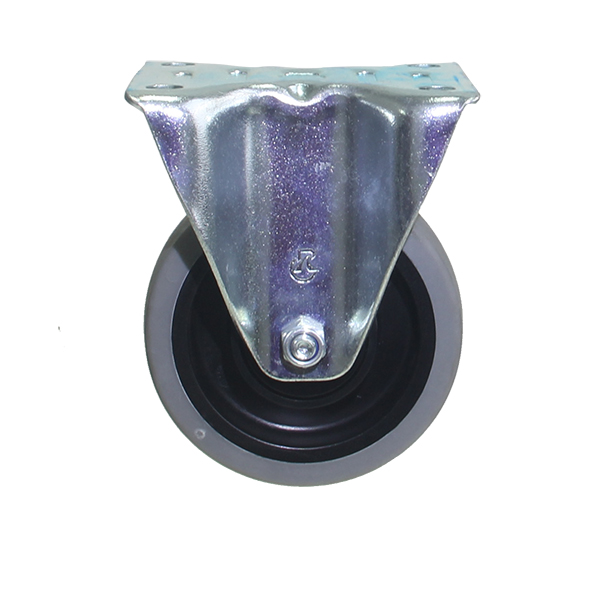

TPR 100mm FIXED 1 600

Product parameters

Product Parameters (1)

Product Parameters (2)

Product Parameters (3)

Product Parameters (4)

Product Parameters (5)

Product Parameters (6)

Product Parameters (7)

Product Parameters (8)

Product Parameters (9)

 no.

Wheel Diameter
 & Tread Width

Load
(kg)

Axle
Offset

Plate/Housing
Thickness

Overall
Height

Top-plate  Outer Size

Bolt Hole  Spacing

Bolt Hole  Diameter

Opening
Width

Product Nunber

80*36

120

38

2.5|2.5

108

105*80

80*60

11*9

42

R1-080S-441

100*36

150

38

2.5|2.5

128

105*80

80*60

11*9

42

R1-100S-441

125*36

160

38

2.5|2.5

155

105*80

80*60

11*9

42

R1-125S-441





Company introduction

Zhongshan Rizda Castor Manufacturing Co.,Ltd. Located in Zhongshan City,Guangdong Province,one of the central cities of the Pearl River Delta,covering an area of more than 10000 square maters,It is a professional manufacture of wheels and Castors to provide customers with a wide range of sizes,types and styles of products for a variety of applications.The predecessor of the company was BiaoShun Hardware Factory,founded in 2008 which have had 15 years of professional production and manufacturing experience.

Features

1. TPR materials are completely environmentally friendly.

2. It can achieve complete silence and wear resistance.

3. TPR material has no problem of water absorption and no problem of yellowing and cracking due to hydrolysis. The product has a longer shelf life.

4. Single ball bearing has low noise and long service life. The advantage is that the noise will not increase after long-term use, and no lubricant is required.
