European industrial Castor,125mm, Top plate, Swivel, PU wheel

Short Description:

1. Wheel center:Aluminum

2. Bearing:Double precision ball bearing

Castors with Polyurethane Wheels on AL Rim,The castors are made of polyurethane polymer compound, which is an elastomer between plastic and rubber. The center is equipped with aluminum core,Its excellent and unique comprehensive performance is not possessed by ordinary plastic and rubber. The castors are internally lubricated with General purpose lithium-based grease, which has good water resistance, mechanical stability, corrosion resistance and oxidation stability. It is suitable for the lubrication of rolling bearings, sliding bearings and other friction parts of various mechanical equipment within the working temperature of – 20~120 ℃.


Product Detail

Product Tags

Company Introduction

Zhongshan Rizda Castor Manufacturing Co., Ltd. Located in Zhongshan City, Guangdong Province, one of the central cities of the Pearl River Delta, covering an area of more than 10000 square maters. It is a professional manufacture of wheels and Castors to provide customers with a wide range of sizes, types and styles of products for a variety of applications. The predecessor of the company was BiaoShun Hardware Factory, founded in 2008 which have had 15 years of professional production and manufacturing experience.

Product introduction

Aluminum core PU wheel has high bearing capacity, wear resistance, impact resistance, chemical corrosion resistance and heat resistance, and is widely used in industry. In addition, the outer layer of the wheel is wrapped by PU, which has good noise reduction effect. There are several small steel balls around the shaft center in the double ball bearing, so the friction is small and there is no oil leakage.

swivel 100 AL rim PU wheel

Detailed parameters of the Castor:

• Wheel Dia : 100mm

• Wheel width : 32mm

• Load capacity : 150 KG

• Axle offset : 38

• Load hight : 128mm

• Top plate size : 105mm*80mm

• Bolt hole spacing : 80mm*60mm

• Bolt hole Dia : Ø11mm*9mm

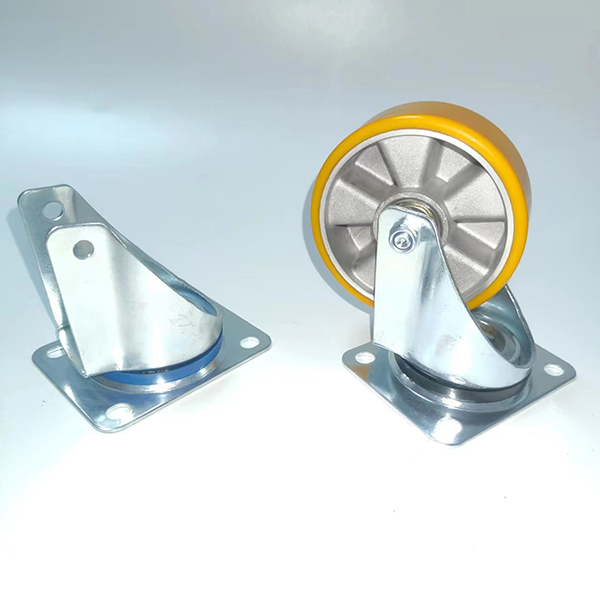

Bracket:

  • • pressed steel, zinc-plated, blue-passivated
  • • double ball bearing in the swivel head
  • • swivel head seal
  • • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic riveting process

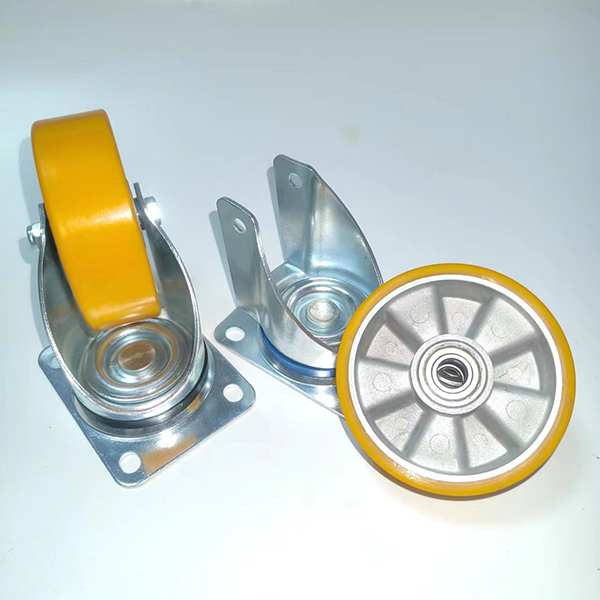

微信图片_20230508162355
5

Wheel :

Tread : HIgh quality PU, Hardness 86 shore A, Colore yellow, non-marking, non-staining.

• wheel Rim: die-cast aluminium, colour silver grey.

Features

1. Excellent tensile resistance and highest tensile strength.

2. The aluminum core is not easy to rust and has good durability.

3. Good electrical insulation, skid resistance, wear resistance, weather resistance and general chemicals.

4. Soft texture can effectively reduce noise in use.

5. Good dynamic mechanical properties.

6. Double ball bearing has long service life and good anti-aging performance.

Product parameters

Product Parameters (1)

Product Parameters (2)

Product Parameters (3)

Product Parameters (4)

Product Parameters (5)

Product Parameters (6)

Product Parameters (7)

Product Parameters (8)

Product Parameters (9)

no.

Wheel Diameter
& Tread Leg space

Load
(kg)

Axle
Offset

Bracket
Thickness

Load
Height

Top-plate  Size

Bolt Hole  Spacing

Bolt Hole  Diameter

Opening
Leg space

Product Nunber

80*32

120

38

2.5|2.5

108

105*80

80*60

11*9

42

R1-080S-622

100*32

150

38

2.5|2.5

128

105*80

80*60

11*9

42

R1-100S-622

125*40

180

38

2.5|2.5

155

105*80

80*60

11*9

52

R1-125S-622

160*50

250

52

3.0|3.5

190

135*110

105*80

13.5*11

62

R1-160S-622

200*50

300

54

3.0|3.5

235

135*110

105*80

13.5*11

62

R1-200S-622
