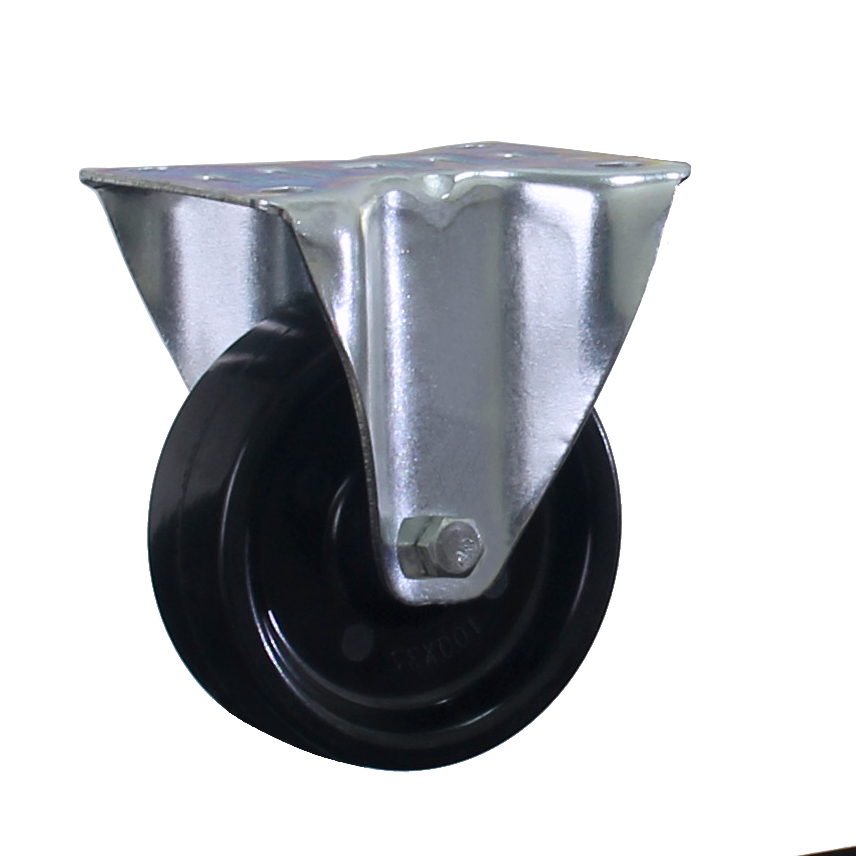

100mm Phenolic-Glass Fiber High-Temperature Wheels, European type Medium Duty Castors, Fixed, Zinc ( galvanized) surface
Bracket: R series
• Steel stamping
• Fixed Bracket
• Fixed castor support can be fixed on the ground or other plane, avoiding the equipment the use of shaking and shaking, with good stability and safety.
Wheel:
• Wheel tread: Phenolic-Glass Fiber High-Temperature resistant wheel, non-marking, non-staining
• Bearing: Teflon high-temperature T-cap and a plain bearing.
• Maximum Operating Temperature：300℃
Key Features:
• Abrasion-resistant
• High Temperature Resistance
• Chemically resistant
• High Load Capacity
• long service life.
Applications:
Industrial Furnace & Oven Transport; Food Processing (High-Temp Zones).
Performance:
Phenolic glass fiber High Temperature Resistance wheels withstand temperatures up to 300°C in industrial furnace and oven transport, ensuring smooth movement of heavy loads.
Technical data:
| Wheel Ø (D) |  |
100mm |
| Wheel Width |  |
35mm |
| Load Capacity |  |
200mm |
| Total Height (H) |  |
128mm |
| Plate Size |  |
105*80mm |
| Bolt Hole Spacing |  |
80*60mm |
| Offset (F) |  |
38mm |
| Bearing type |  |
Plain bearing |
| Non-marking | × | |
| Non-staining | × |
Product parameters
|
|
|
|
|
|
|
|
|
|
|
|
Wheel Diameter |
Load |
Axle |
Plate/Housing |
Overall |
Top-plate Outer Size |
Bolt Hole Spacing |
Bolt Hole Diameter |
Opening |
Product Number |
|
80*35 |
120 |
38 |
2.5|2.5 |
108 |
105*80 |
80*60 |
11*9 |
42 | R1-080R-9301 |
|
100*35 |
200 |
38 |
2.5|2.5 |
128 |
105*80 |
80*60 |
11*9 |
42 |
R1-100R-9301 |
|
125*40 |
250 |
38 |
2.5|2.5 |
155 |
105*80 |
80*60 |
11*9 |
52 |
R1-125R-9301 |
Features
1. It is non-toxic and odorless, belongs to environmental protection materials, and can be recycled.
2. It has oil resistance, acid resistance, alkali resistance and other characteristics. Common organic solvents such as acid and alkali have little effect on it.
3. It has the characteristics of rigidity, toughness, fatigue resistance and stress cracking resistance, and its performance is not affected by humidity environment.
4. Suitable for use on a variety of ground; Widely used in factory handling, warehousing and logistics, machinery manufacturing and other industries; The operating temperature range is - 15~80 ℃.
5. The advantages of bearing are small friction, relatively stable, not changing with bearing speed, and high sensitivity and accuracy.
