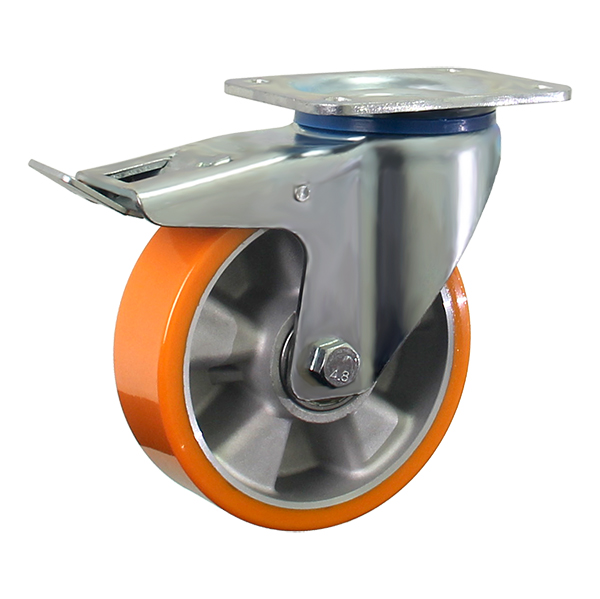

160mm PU on Aluminium (AL) rim Wheels, European type Heavy Duty Castors, Swivel bracket with total brake, Zinc ( galvanized) surface

Short Description:

European Heavy duty industrial castors, Steel stamping Swivel bracket with total brake, Zinc ( Galvanized ) surface; with a Heavy load capacity design. It has a PU on Aluminium (AL) rim/core wheel, and Double ball bearing.

Send email to us

Product Detail

Product Tags

Bracket: R series

• Steel stamping

• Double ball bearing in the swivel head

• Swivel head sealed

• With total brake

• Minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic riveting.

Wheel:

• Wheel tread: Aluminium (AL) rim/core wheel, non-marking, non-staining

• Wheel rim: Casting Polyurethane moulding, Double ball bearing.

Key Features:

• Abrasion-resistant

• Quiet rolling

• Chemically resistant

• Floor protection

• long service life.

Applications:

Medical Devices, High-End Furniture, Warehouse Carts & Industrial Equipment.

Performance:

Used in premium offices, our polyurethane casters are trusted to maintain pristine aesthetics and minimize costly damage to valuable wood flooring.

Technical data:

Wheel Ø (D)		160mm
Wheel Width		50mm
Load Capacity		600mm
Total Height (H)		196mm
Plate Size		135*110mm
Bolt Hole Spacing		105*80mm
Offset (F)		52mm
Bearing type		Double ball bearing
Non-marking		×
Non-staining		×

Product parameters


Wheel Diameter & Tread Width	Load (kg)	Axle Offset	Plate/Housing Thickness	Overall Height	Top-plate Outer Size	Bolt Hole Spacing	Bolt Hole Diameter	Opening Width	Product Number
100*50	350	52	5.0\|4.0	128	135*110	105*80	13.5*11	63	R2-100S4-G042
125*50	450	52	5.0\|4.0	155	135*110	105*80	13.5*11	63	R2-125S4-G042
150*50	600	52	5.0\|4.0	191.5	135*110	105*80	13.5*11	63	R2-150S4-G042
*16050**	600	52	5.0\|4.0	196	*135110**	*10580**	*13.511**	63	R2-160S4-G042
200*50	600	54	5.0\|4.0	240	135*110	105*80	13.5*11	63	R2-200S4-G042

Features

1. It is non-toxic and odorless, belongs to environmental protection materials, and can be recycled.

2. It has oil resistance, acid resistance, alkali resistance and other characteristics. Common organic solvents such as acid and alkali have little effect on it.

3. It has the characteristics of rigidity, toughness, fatigue resistance and stress cracking resistance, and its performance is not affected by humidity environment.

4. Suitable for use on a variety of ground; Widely used in factory handling, warehousing and logistics, machinery manufacturing and other industries; The operating temperature range is - 15~80 ℃.

5. The advantages of bearing are small friction, relatively stable, not changing with bearing speed, and high sensitivity and accuracy.
